PrecisionVision 100X

UNMANNED AIRCRAFT SYSTEM (UAS)

Take flight with PrecisionVision® 100X, the newest drone model system from Central UAS Technologies. With a payload capacity of 100 lbs. PrecisionVision® 100X was built to deliver unrivaled versatility and precision for the biggest applications.

753140808-uaswebicons_safety

A safer option verses other inspection and applications methods

753140811-uaswebicons_rtk-precision

RTK centimeter precision applications and spot treatments

753140819-uaswebicons_efficient-locations

An extremely efficient solution for challenging or inaccessible locations

753140824-uaswebicons_cost-efficiency

A cost effective option for small to medium jobs when compared to traditional ground and aerial equipment

752336244-uaswebicons_ports

Expansive granular and liquid payload loading ports for easy and fast loading

752336230-uaswebicons_hd-camera

High-definition (HD) real-time video camera with integrated motorized gimbal for pitch control, enabling real-time vertical angle adjustment by the user

753140815-uaswebicons_integration

Seamless integration for imagery and aerial application flight planning (import & export to any GIS system)

752336245-uaswebicons_ulv

Ultra Low Volume (ULV) payload system for insect control such as adult grasshoppers and mosquitoes

752336240-uaswebicons_payload-to-ground

Payload sensors, providing real-time weight values on the ground and in the air

752336238-uaswebicons_liquid-spray-target-drift

Liquid spray system engineered to maximize deposition while minimizing off target drift

752336227-uaswebicons_granular-swath

Industry leading granular payload system, achieving efficacious results with up to a 90’ swath

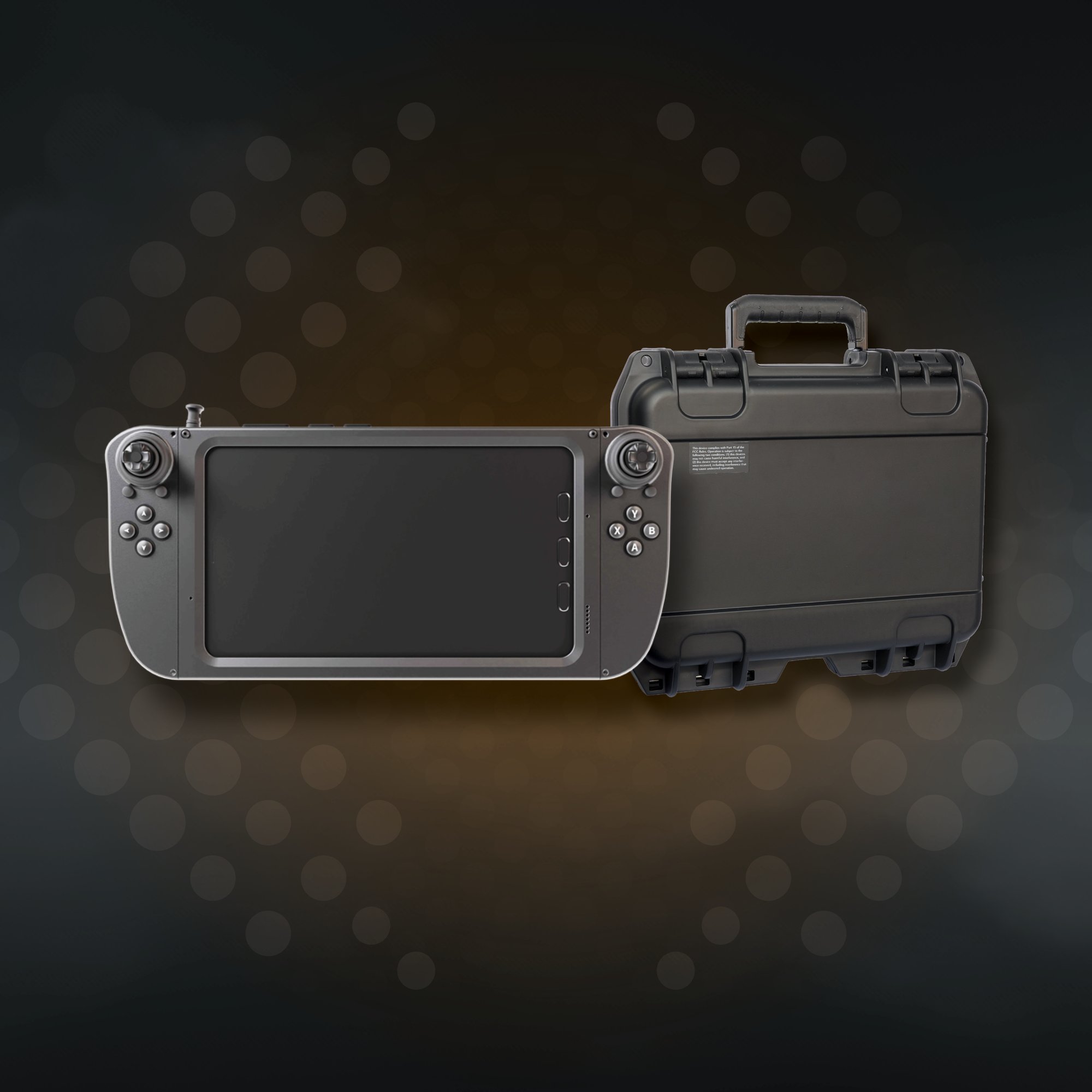

Precision Vision Ground Control Station (GCS)

  • Large HD capacitive touch screen (5.46” 1080p 16M colors and 1,000 nits)
  • High-definition (HD) real-time video camera with integrated motorized gimbal for pitch control, enabling real-time vertical angle adjustment by the user
  • Lightweight for all day operations without fatigue
  • Autonomous flight mode controls every aspect of flight and spray applications
  • All flight planning, spray parameters, manual and automated control can be performed on the GCS
  • Seamlessly supports the import and export of shapefiles
  • Easily stores and retrieves hundreds of material configurations, including key parameters like product mix, speed, swath width, altitude, and pump settings
  • Complete flight and spray capabilities in manual or autonomous mode
  • Flight data recording of applications stored as shapefiles with the ability to export to any GIS system
  • Flight safety enhanced with built in operational features such as battery failsafe and lost link, return to land, real-time battery management system
  • Single click emergency return to land feature
GCS Capture 4

Flight Patterns

  • Polygon
  • Path
  • Spots
  • Points

Fly the perimeter of a field to create the treatment flight plan.

Fly around obstructions to create no fly zones.

Cameras

  • HD real-time video displayed on PrecisionVision Ground Control Station
  • High-definition (HD) real-time video camera with integrated motorized gimbal

drawing of hands holding drone controller

PrecisionVision Software Helping You Take Flight Faster!

  • Flight Controller is Made in the USA with domestic and international components
  • PrecisionVision Autopilot Firmware and GCS Application Software are Customized and Controlled by LEAT Software Engineer.

LiDAR and Radar Technologies + RTK Flight Precision

  • LiDAR and radar sensors are capable of measuring the distances for obstruction avoidance and terrain following
  • Obstacle sensing LiDAR assists with obstruction avoidance by immediately entering UAS into hover flight mode
  • Terrain following radar adds a critical layer of precision and safety
  • Real-Time Kinetic (RTK) option, provides centimeter precision accuracy horizontally and vertically

Pre-Set Menu and Autonomous Flight Applications as easy as Ready, Set, Go!

The power of the PrecisionVision GCS is illustrated when preparing for an application mission. Users have manual control options with autonomous capabilities. The ability for settings to be saved, named, and easily selected for future flights allows users to work smarter and faster.

100x Interchangeable Payload Systems

Quick Change

Granular Payload

UAV Adulticiding

Liquid Payload

Payload Capacity

100 lbs

100 lbs

100 lbs

Swath

4′ – 90′

300′ – 500′

1′ – 25′

Average Acres/Min

0.3 – 4.5
acres/min

14.5
acres/min

1.25
acres/min

Flow Rate

2 – 25
lbs/min

3.4 – 10
oz/min

10 – 660
oz/min

Droplet Spectrum

n/a

DV 0.5 38-45
microns

80 – 2500
microns

Innovative UAS Aerial Application Technologies

UAS Systems, Software, and Application Services

Investigate the Possibilities - Let's Talk!
